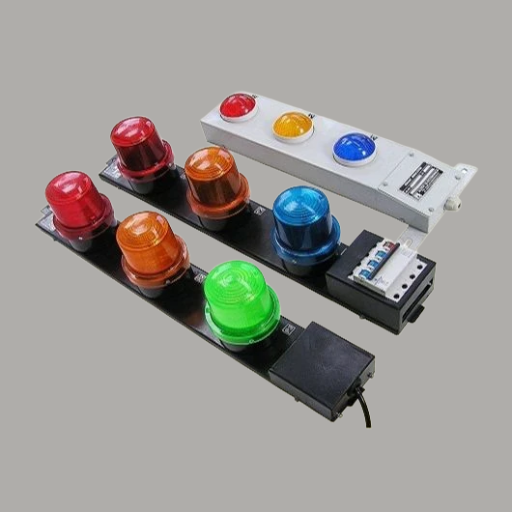

Warning Lights - Busbar Supply Indicating Lamps/Crane Indicator
Model | BIS-RT-R/Y/B-240A/N |
|---|---|
Source of Light | Cluster of 21 no. LED’s |
Output Light Intensity in Lux | Minimum 3500 Lux at Top Surface |
Operating Voltage | 230VAC (±25%) 50 Hz |
Operating Temperature | -4 to 80 °C |
Power Consumption | ~6 Watts |
Enclosure of Each Lamp | IP-55 Grade, Dust/Water-tight with UV-Stabilised Polycarbonate Lens |
Mounting Arrangement | All the Three Indicators Firmly Fixed (Integrated) on M.S. Fabricated and Powder Coated Channel Frame |
Life Expectancy | 1,00,000 Hours |
Weight | ~2.2 kgs |
Size | Length: 450 mm, Width: 200, Height: 85 mm |
Electrical Connections | Through 30 Amp open T.B. (Option of Fused Terminal Available) |
Excellent illumination in all directions
Omni-directional visibility
Immune to vibrations and electrical surges
Weather-proof construction
Powder coated M.S. frame with enclosed terminal block
Option of colour, voltage ratings
Leakage voltage glow proctection
We are one of the leading Industrial Safety Signalling Lights manufacturers in India.
Certified by ICAO, Altos Electronics is Trusted by Industry Giants:
